• Product Type: Smart Automatic Pet Feeder
• With Water Dispenser: No
• Power Source: Charge
• Min Output: 50g
• Max Output: 1000g
• Time Setting: Yes
• Material: Plastic (ABS/SUS 304/PC)
• Plug Type: EU
• LCD Display: Yes
• Suitable For: Cats and Dogs
• Smart Device: Yes
• Capacity: 4L

---

Key Features:

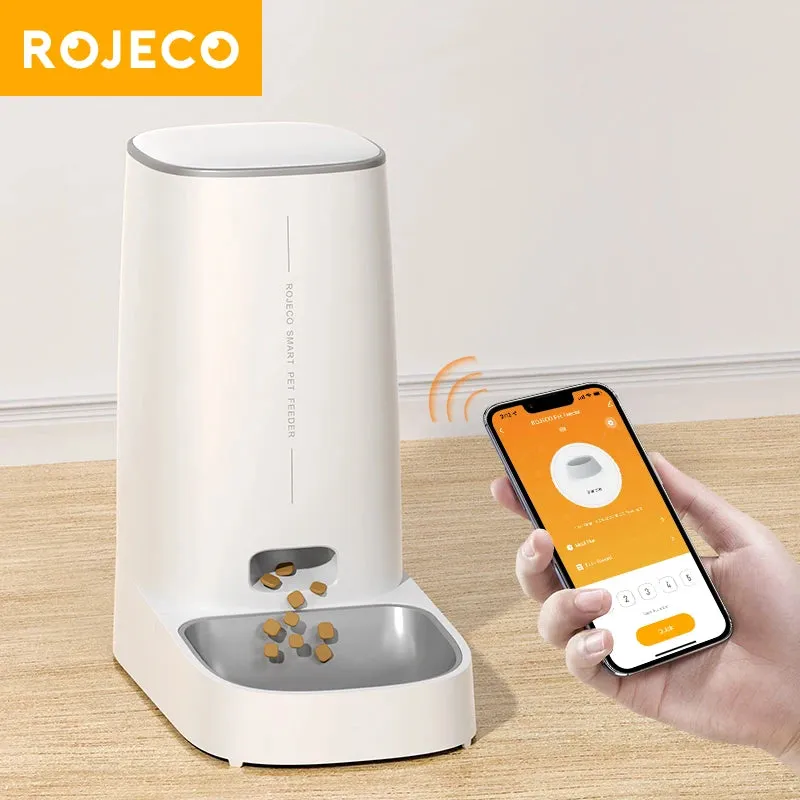

• Smart WiFi Control: Manage feeding schedules and portions via the ROJECO app.
• Large Capacity: 4L storage, ideal for small to medium-sized pets.

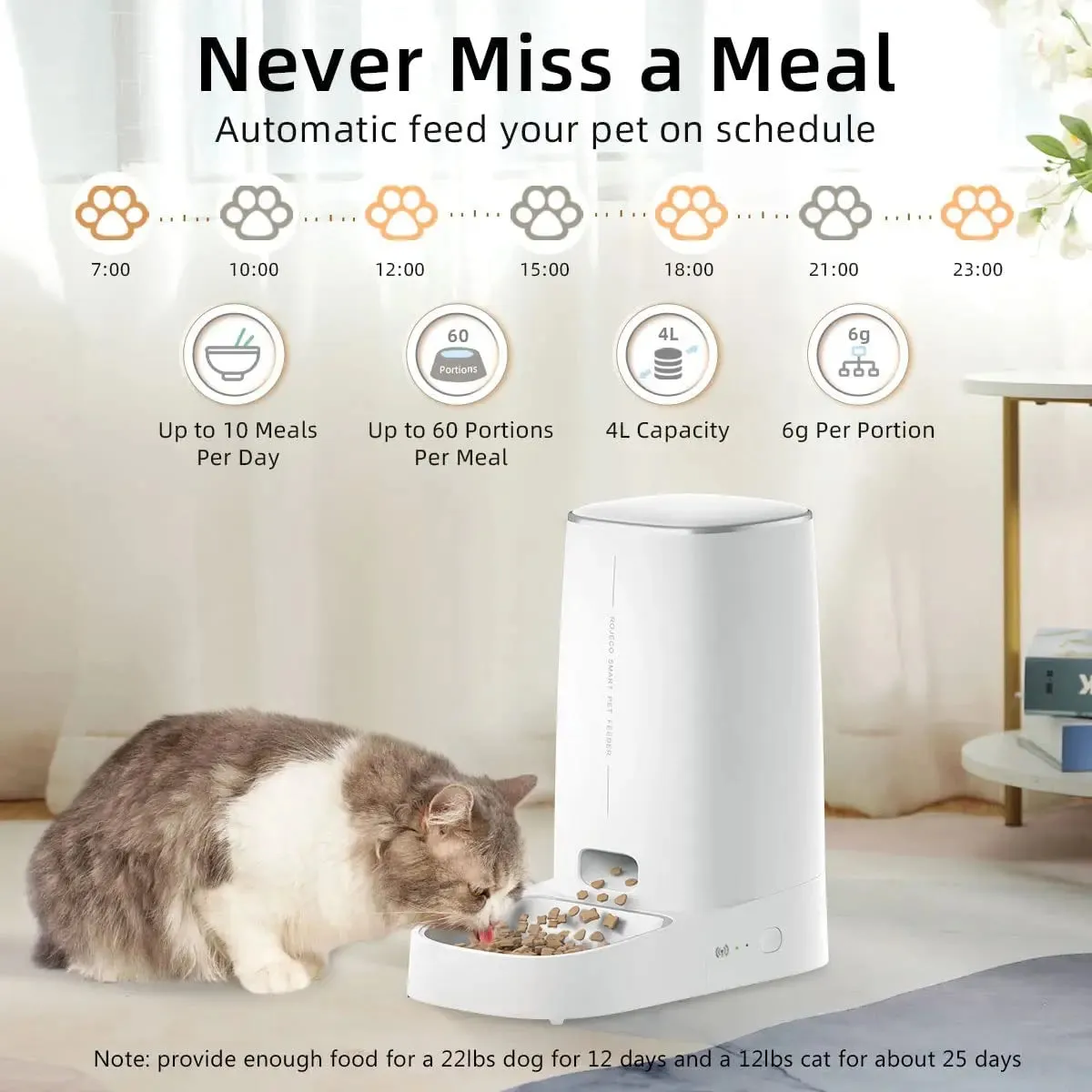

• Customizable Feeding: Set up to 10 meals per day, with up to 60 portions per meal.
• Durable Material: Made from high-quality ABS/SUS 304/PC for long-lasting use.

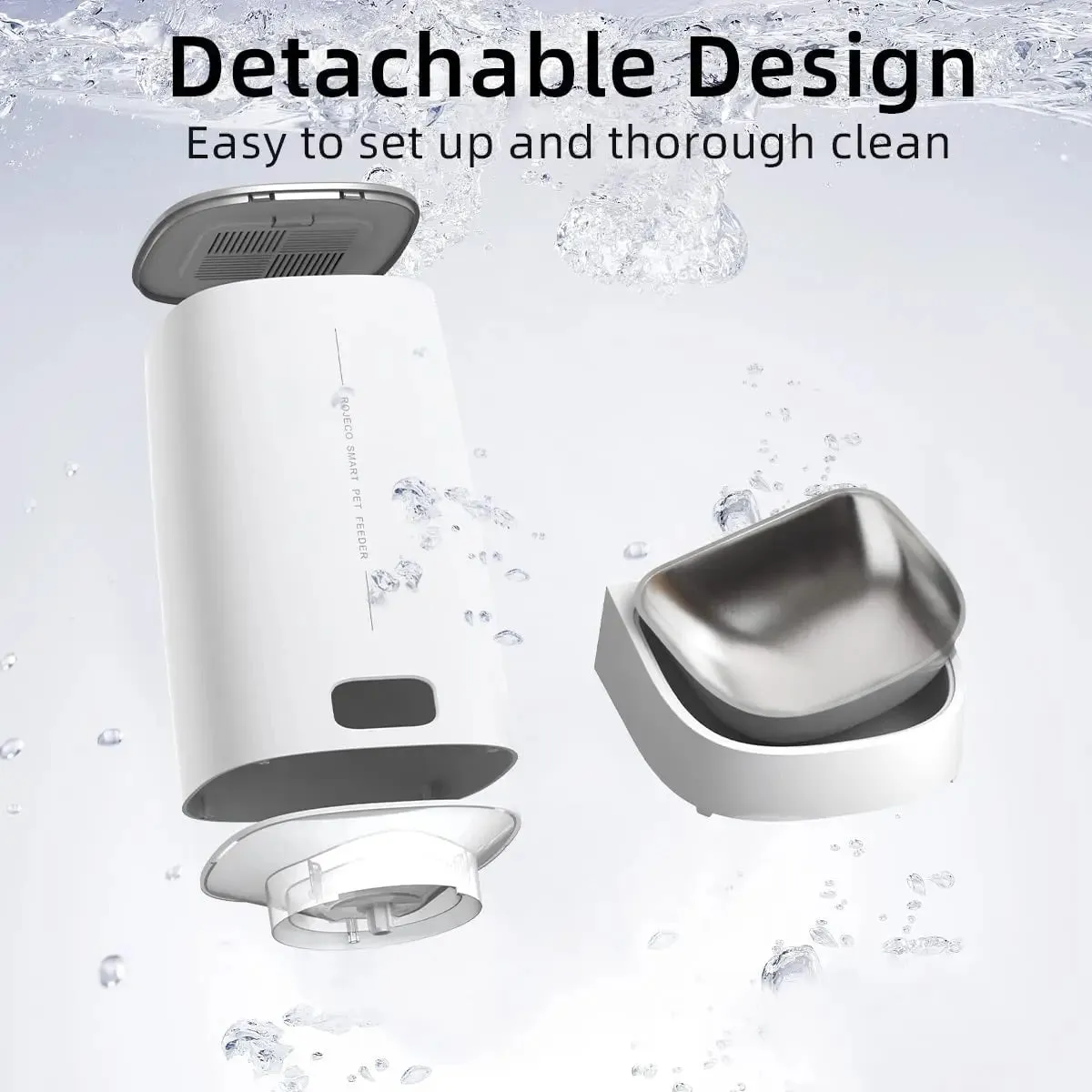

• Convenient Design: Detachable parts for easy cleaning and maintenance.

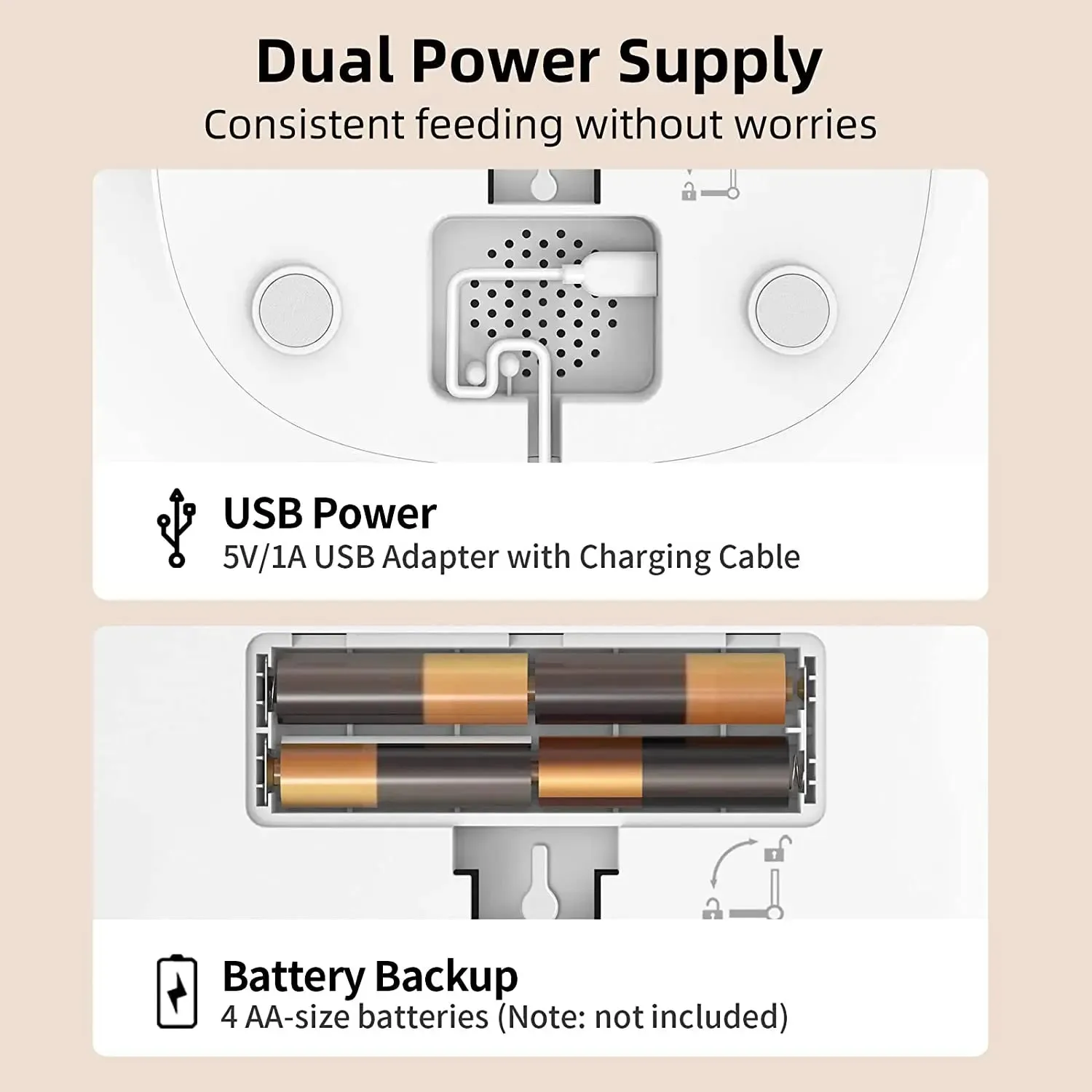

• Dual Power Supply: Supports both charging and battery operation (4 AA batteries not included).

Usage Instructions:

1. Add Food: Press the lid button to open and add dry food (4-18 mm in diameter).
2. Add Desiccant: Place desiccant in the designated box to keep food fresh.
3. Install the Food Bowl: Attach the bowl to the main body as shown in the instructions.
4. Power On: Connect the charging cable to the power supply and the Type-C port at the bottom of the feeder.
5. Connect to the App: Download the "ROJECO" app, enable Bluetooth, and follow the instructions to add the device.
6. Schedule Feeding: Set feeding times and portions via the app. The feeder will automatically dispense food according to the schedule.
7. Manual Feeding: Double-click the manual feeding button to dispense one portion (about 5g).

Product Specifications:

• Model: PTM-001 (WiFi)
• Color: White
• Size: 18.218.235 mm
• Input Parameters: 5VDC/1A
• Battery Requirement: 4 AA Batteries (Not Included)

Important Tips:

1. Food Type: Use dry food with a diameter of 4-18 mm for optimal performance.
2. WiFi Connection: Ensure your mobile phone connects to a 2.4G WiFi network.
3. Indoor Use: Recommended for indoor use, away from direct sunlight and fire sources.
4. Placement: Place the feeder against a wall or in a corner to prevent pets from tipping it over.
5. Supervision: Children should use the feeder under adult supervision.
6. Maintenance: Do not soak the feeder in water. If the desiccant is damaged, do not use it.
7. Disassembly: Only maintenance personnel should disassemble the feeder to avoid injury.

Troubleshooting:

• Network Connection Issues: Ensure you are using a 2.4G WiFi network and that the network password is correct. The distance between the feeder and router should be within 20 meters.
• Device Search Issues: If the device is not found, press the feeding button for 6 seconds and try adding the device again.

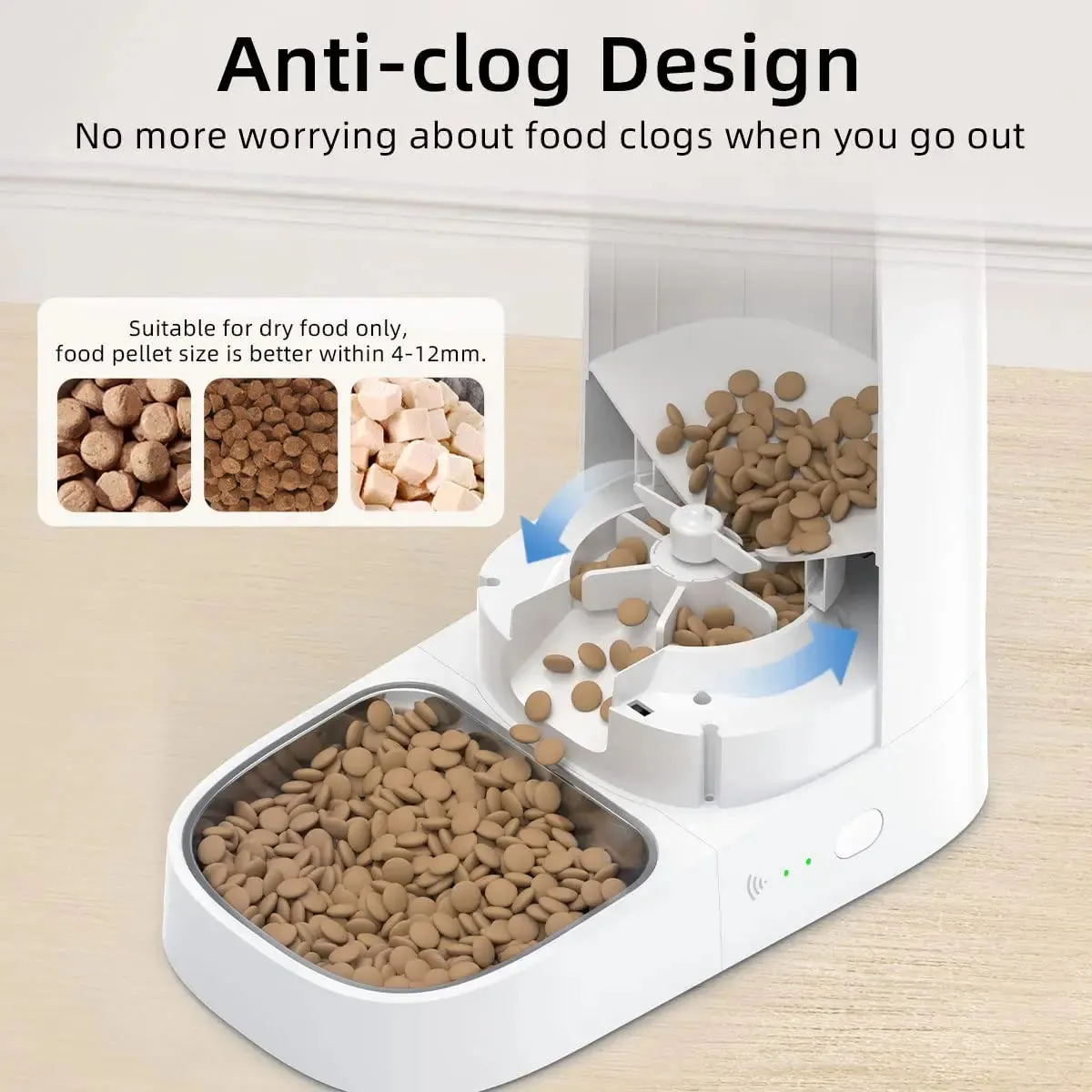

• Feeding Issues: Ensure there is sufficient dry food and that the feeding channel is not blocked.
• Power Issues: Check the connection of the power supply and the Type-C charging port. Ensure the power indicator light is on.

Ensure your pets are well-fed and healthy even when you are away with the ROJECO Smart WiFi Automatic Pet Feeder.
